| Business Type | Manufacturer, Exporter |
| Country of Origin | India |
| Type | Single Side Rotary |
| Certification | ISI Certified |
| Click to view more | |
Preferred Buyer From
| Location | Worldwide |
Product Details
Color
Grey
Voltage
220V
Driven Type
Electric
Warrenty
1 Year
Specifications
| Machine Type | 16D | 20D | 26B |
| Type of Tooling | D | D | B |
| Number of Stations | 16 | 20 | 26 |
| Output†Tablets/Hr | 13500 - 38400 | 17000 - 48000 | 23400 - 62400 |
| Turret RPM (Max) | 40 RPM | 40 RPM | 40 RPM |
| Max. Operating Pressure | 100 KN | 100 KN | 60 KN |
| Max. Tablet Diameter | 25 mm. | 25 mm. | 16 mm. |
| Max. Depth of Fill | 20.5 mm. | 20.5 mm. | 17.5 mm |
| Upper Punch Penetration | 1.5 to 8 mm. | 1.5 to 8 mm. | 1.5 to 8 mm. |
| Diameter of Die(mm.) | 38.1 | 38.1 | 30.15 |
| Diameter of Punch(mm.) | 25.34 | 25.34 | 18.99 |
| Length of Punch(mm.) | 133.6 | 133.6 | 133.6 |
| Power | 3.0 H.P. x 1440 RPM x 3 Phase x 415 Volts | ||
| Overall Dimensions(mm.) | 980 x 1020 x 1820 | ||
| Net Weight (Kgs.) | 1150 | ||

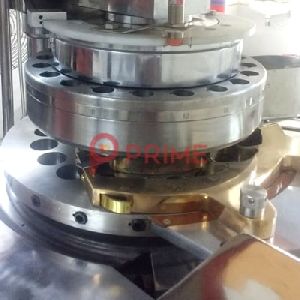

Looking for "Single Side Rotary Tablet Press Machine" ?
